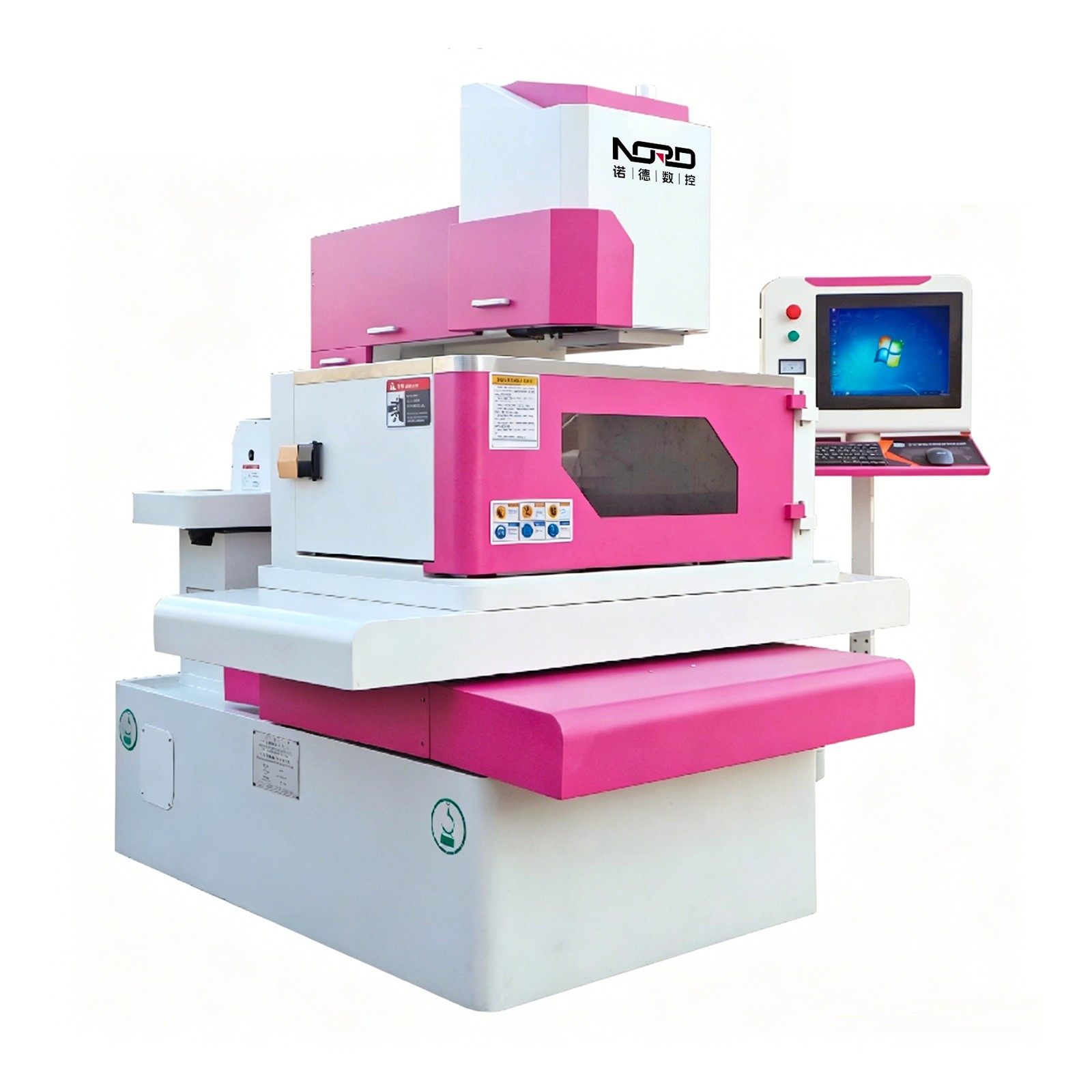

ND400/ND500/ND630/ND800 AC Servo CNC Medium-Speed Integrated EDM Wire Cutting Machine

Model: ND400/ND500/ND630/ND800
Brand: Nuode
Category: Middle Speed EDM Wire cutting Machine
Get A Quote
Contact Us

Share product:

Product Description
FAQ

Machine Performance Characteristics

  • Strip bed, C- shaped column, cross full support table

  • Fully enclosed environmental protection cover, prevent splashing

  • Standard Taiwan Dinghan rail screw

  • Constant tension device, diamond eye mold

  • XY servo, UVZ hybrid servo

  • Easy to operate, stable and reliable performance, saving space

  • Electronic handwheel, touch LCD control screen

  • High efficiency, high frequency, multiple cutting



Main technical parameters

Items/SpecificationND400ND500ND630ND800
Worktable X/Y axis travel320 x 400mm400 x500mm500 x 630mm630 x 800mm
Max. straight cutting thickness260mm/300mm260mm/300mm350mm/400mm350mm/400mm
Max. load capacity300kg500kg800kg1200kg
Z-axis ram vertical travel200mm/240mm200mm / 240mm300mm300mm
Machine dimensions2050x1700x1880mm2200x 1800 x 1890mm2630x 2250 x 1900mm2930x 2460 x 1950mm
Machine weight1600kg1800kg2400kg3000kg


General technical parameters

Max.cutting taper+3° /80mm
X/Y minimum command unit0.001mm
U/V minimum command units0.001mm
Control methodX/Y axis AC servo, U/V/Z axis hybrid motor
Z-axis transmissionelectronic handwheel/electric lifting
Number of linkage control axisX/Y/U/V axis
Wire drum Max. travel200mm
Electrode wire diameter range0.15 ~ 0.20mm (standard o 0.18mm)
Wire running speed1 ~ 11.4m/s adjustable by frequency conversion (servo control)
Processing accuracy≤0.01mm
Max. cutting efficiency≥150mm2/min
Best surface roughnessRa≤1.0 ~ 1.2um(cut one time and repair two times)
Working fluid tank volume90L/120L
Working fluid filtration methodpaper core fine filtration
Power supplythree-phase 380V+ 10%; 50+1HZ
Control systemLQCUT
Total power consumption2.3/3kW
Max. processing current8A
Machine noise≤40dB


TAIWAN LINEAR GUIDE RAIL

TAIWAN LINEAR GUIDE RAIL

X,Y,U,V axis and wire barrel all adopts Taiwan high precision linearguide rail.

CHROME-PLATED WIREBARREL

CHROME-PLATED WIREBARREL

The wire barrel adopts a chromlum plating process to increase the surface finish,reduce the runout of the molybdenum wire, and keep the molybdenum wire stable.

THICKEN GUIDE RAIL BASE

THICKEN GUIDE RAIL BASE

Increase machine stability and keep the machine stable for a long time.

P3-GRADE DOUBLE NUTBALL SCREW

P3-GRADE DOUBLE NUTBALL SCREW

Industry level, high precision,low wear and long lite.

AUTOMATIC LUBRICATION PUMP

AUTOMATIC LUBRICATION PUMP

Set parameters,intelligent automatic lubrication,save time and effort, and keep the machine running normally.

REALIZATION OF VENEER PROCESSING

REALIZATION OF VENEER PROCESSING

More stable molybdenum wires, fuller conductivity, faster cutting results.

UVZ AXIS USING SERVO MOTOR

UVZ AXIS USING SERVO MOTOR

Taper device from the traditional hanging type or side-mounted type improved to horizontal type.

Lifting from the traditional single rod type improved to double straight rail four slider lift.

MOLYBDENUM WIRE

MOLYBDENUM WIRE

0.18*2000

CARBIDE CONDUCTIVE BLOCK

CARBIDE CONDUCTIVE BLOCK

8*20*6

Q：

What CNC system do you use?

A：
FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, etc. It depends on your choice.
Q：

When is the delivery time?

A：
If the machine you will order is standard machine, we can ready the machine within 15 days. If some special machines, it will become longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time. We will give you the answer accordingly.
Q：

What is your minimum order quantity and warranty?

A：
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
Q：

Are you factory or trading company?

A：
We are factory and we have Import and export rights, There are many clients coming here to visit our factory every year.
Q：

Is there a tracking number for my item?

A：
Yes, of course. We usually ship your goods by EMS, DHL, FedEx, UPS, TNT with online track, you can view the ship status on website.
Q：

It is my first time to use this machine , is it easy to operate?

A：
We have manual book and operation video, it can teach you how to use it .
If there is still have any question, we can teach you online.
Q：

What can i do if the machine have any problems after i get it?

A：
Free parts will be sent to you during warranty period
Free after-sales service will be given in the machine lifetime, we offer you 24-hours online service.
