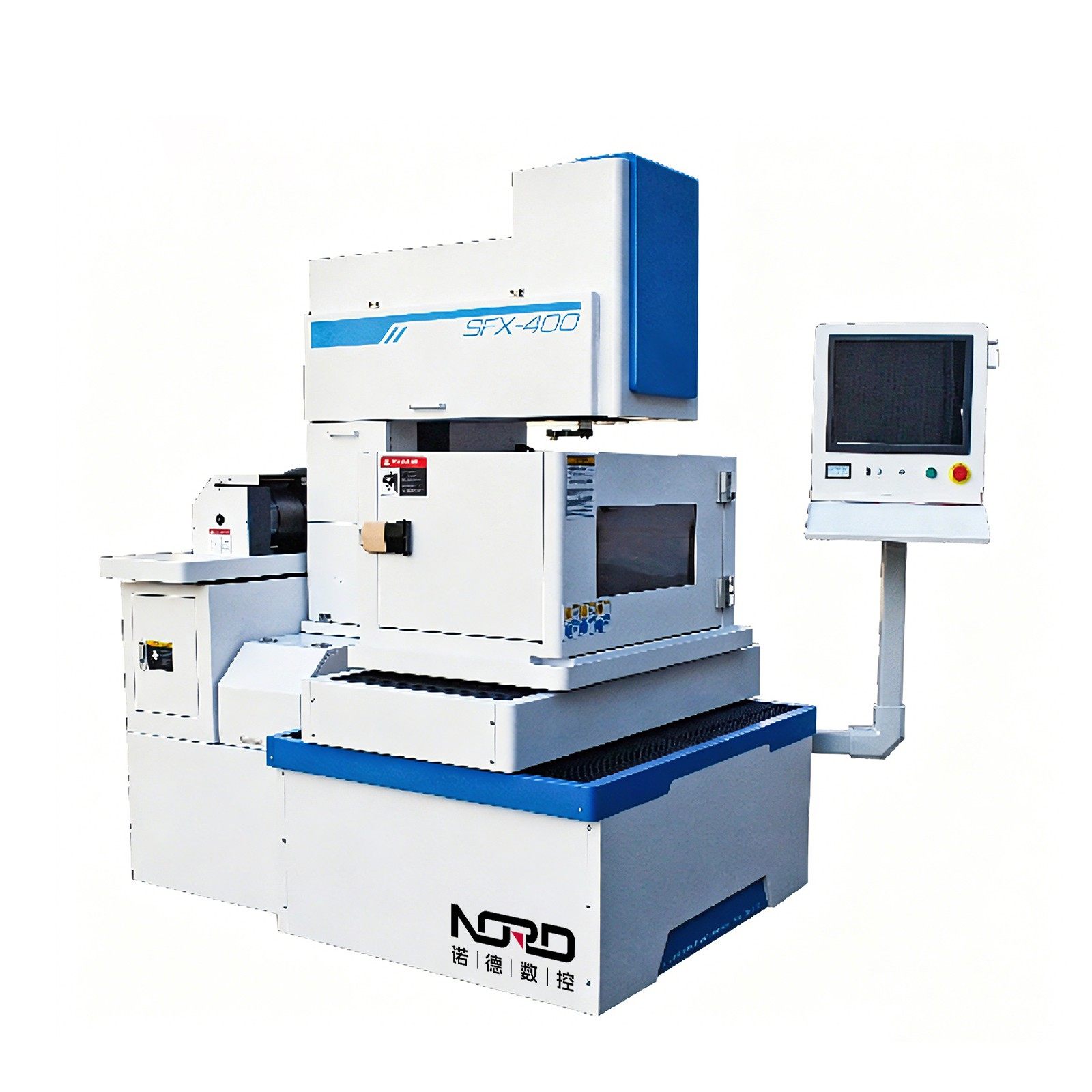

NDX400/NDX500 AC Servo CNC Medium-Speed Integrated EDM Wire Cutting Machine

  • NDX400/NDX500 AC Servo CNC Medium-Speed Integrated EDM Wire Cutting Machine

NDX400/NDX500 AC Servo CNC Medium-Speed Integrated EDM Wire Cutting Machine

Model: NDX400/NDX500
Brand: Nuode
Category: Middle Speed EDM Wire cutting Machine
Get A Quote
Contact Us

Share product:

Product Description
FAQ

Machine Performance Characteristics

  • Strip machine bed, C-type columns, box-type cross full-support sliding table
  • Standard linear guide rails and ball screw assemblies
  • XY axes equipped with AC servo motors; UVZ axes with hybrid stepping motors
  • Full-function electronic handwheel for convenient and fast operation
  • Eco-friendly protective housing with sleek appearance
  • Constant tension device & diamond wire guide die
  • PLC control system, stable and reliable performance

  • High efficiency & high frequency, capable of multi-pass cutting


Main technical parameters

Item / Model SpecificationLQX400LQX500
X & Y Axis Travel of Worktable320 × 400mm400 × 500mm
Max Linear Cutting Thickness260mm / 300mm260mm / 300mm
Max Load Bearing Weight300kg500kg
Vertical Travel of Z-axis Ram200mm / 240mm200mm / 240mm
Overall Machine Dimension2050 × 1700 × 1880mm2200 × 1800 × 1890mm
Machine Weight1600kg1800kg

General technical parameters

Parameter ItemSpecification
Max Cutting Taper±6° /80mm
Minimum Command Unit of X, Y Axis0.001mm
Minimum Command Unit of U, V Axis0.001mm
Control ModeAC Servo for XY Axes, Hybrid Motors for UVZ Axes
Z-axis DriveElectronic Handwheel / Motorized Lifting (Linear Rail Lifting Optional)
Number of Simultaneous Controlled Axes4 axes (X, Y, U, V)
Max Travel of Wire Drum200mm
Electrode Wire Diameter Rangeφ0.15~φ0.20mm (Standard φ0.18mm)
Wire Travel Speed1~11.4m/s, Variable Frequency Adjustable (Servo Motor Optional)
Machining Accuracy≤0.01mm
Max Cutting Efficiency≥150mm²/min
Optimal Surface RoughnessRa≤1.0~1.2μm (1 rough cut + 2 finishing cuts)
Working Fluid Tank Capacity90L/120L
Working Fluid Filtration MethodPaper Core Fine Filtration
Power Supply3-phase 380V ±10%; 50±1Hz
Control SystemLQ CUT / AutoCut
Total Machine Power Consumption2.3/3kW
Max Machining Current8A
Overall Machine Noise≤40dB

TAIWAN LINEAR GUIDE RAIL

TAIWAN LINEAR GUIDE RAIL

X,Y,U,V axis and wire barrel all adopts Taiwan high precision linearguide rail.

CHROME-PLATED WIREBARREL

CHROME-PLATED WIREBARREL

The wire barrel adopts a chromlum plating process to increase the surface finish,reduce the runout of the molybdenum wire, and keep the molybdenum wire stable.

THICKEN GUIDE RAIL BASE

THICKEN GUIDE RAIL BASE

Increase machine stability and keep the machine stable for a long time.

P3-GRADE DOUBLE NUTBALL SCREW

P3-GRADE DOUBLE NUTBALL SCREW

Industry level, high precision,low wear and long lite.

AUTOMATIC LUBRICATION PUMP

AUTOMATIC LUBRICATION PUMP

Set parameters,intelligent automatic lubrication,save time and effort, and keep the machine running normally.

REALIZATION OF VENEER PROCESSING

REALIZATION OF VENEER PROCESSING

More stable molybdenum wires, fuller conductivity, faster cutting results.

UVZ AXIS USING SERVO MOTOR

UVZ AXIS USING SERVO MOTOR

Taper device from the traditional hanging type or side-mounted type improved to horizontal type.

Lifting from the traditional single rod type improved to double straight rail four slider lift.

MOLYBDENUM WIRE

MOLYBDENUM WIRE

0.18*2000

CARBIDE CONDUCTIVE BLOCK

CARBIDE CONDUCTIVE BLOCK

8*20*6

Q：

What CNC system do you use?

A：
FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, etc. It depends on your choice.
Q：

When is the delivery time?

A：
If the machine you will order is standard machine, we can ready the machine within 15 days. If some special machines, it will become longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time. We will give you the answer accordingly.
Q：

What is your minimum order quantity and warranty?

A：
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
Q：

Are you factory or trading company?

A：
We are factory and we have Import and export rights, There are many clients coming here to visit our factory every year.
Q：

Is there a tracking number for my item?

A：
Yes, of course. We usually ship your goods by EMS, DHL, FedEx, UPS, TNT with online track, you can view the ship status on website.
Q：

It is my first time to use this machine , is it easy to operate?

A：
We have manual book and operation video, it can teach you how to use it .
If there is still have any question, we can teach you online.
Q：

What can i do if the machine have any problems after i get it?

A：
Free parts will be sent to you during warranty period
Free after-sales service will be given in the machine lifetime, we offer you 24-hours online service.
