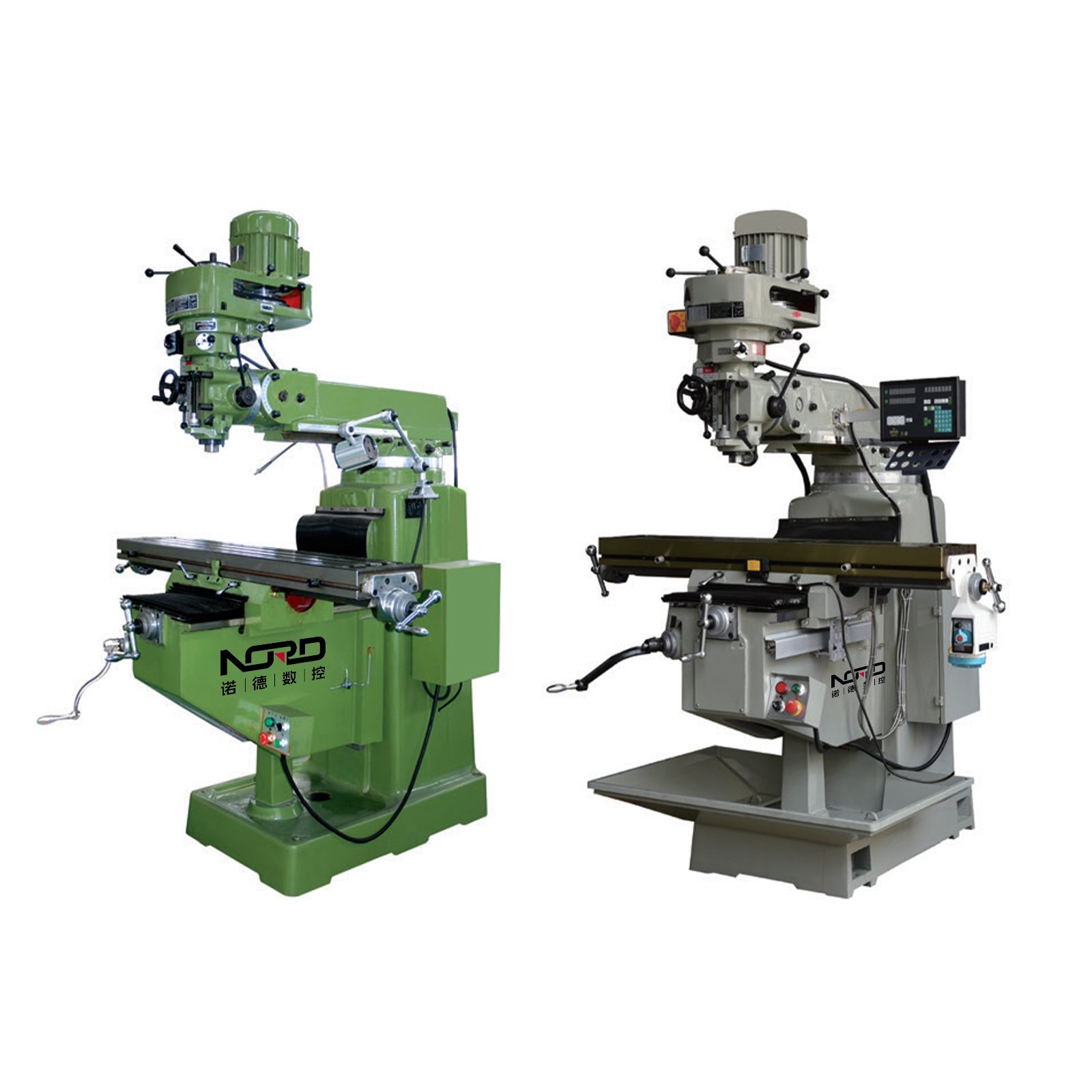

3M/4M/5M/6M Turret type milling machine

Model: 3M/4M/5M/6M
Brand: Nuode
Category: EDM Drilling Machine

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Description	Unit	3M	4M	5M	6M
Spindle Taper		NST#30orR8	NST#40	NST#40	NST#40
Rotate Speed Of Spindle	rpm	16-speed transmission66-4540(50Hz)	16-speed transmission:66-5440	16-speed transmission:66-5440	10-speed transmission:80-2850(50Hz)
Spindle head left and right rotation angle		90	90	90	90
Spindle Quill travel	mm	127	132	132	132
Stroke Of telescopic boom	mm	360	500	500	550
Distance between the Spindle nose and the worktable	mm	0-428	0-530	0-530	0-580
Distance from the spindle center and to the vertical guid way	mm	45	45	45	-
Distance from spindle center to vertical guideway	mm	190-685	170-720	170-720	172-720
Speed of the spindle auto feed(per circle)	mm	0.4/0.08/0.15	0.4/0.08/0.15	0.4/0.08/0.15	0.4/0.08/0.15
Table Size	mm	254×1270	254×1370	254×1370	305×1370
Longitudinal travel	mm	800(740mmwith automatic feed)	900	900	785
Cross Travel	mm	380	408	408	405
Vertical Trave	mm	370	390	390	500
T slot (width×number×interval)	mm	3×16×65	3×16×75	3×16×75	3×16×75
Spindle Motor	HP	3	5(1/2)	5(1/2)	5(1/2)
Lubricate System		manual oiling	manual lubrication	manual lubrication	manual lubrication
Net weight	kgs	1200	1300	1500	1800
Overall size of Spindle center and to the vertical guid way	mm	1700×1730×2200	1800×1830×2350	1800×1900×2400	1800×1900×2400

Due to technical updates, product parameters are subject to change without prior notice.

EQUIPMENT BOTTOM

Reasonable layout, ventilation, dustproof, heat dissipation, anti-interference.

ELECTRONIC COMPONENTS

High temperature aging for a long time, to meet the need of continuous work of components in all-weather.

POWER SUPPLY SYSTEM

Adopting the 3rd generation of independent module professional digital pulse power supply, compared with the integrated power supply, the system is highly integrated, multiple optoelectronic isolation, with higher anti-interference ability and more reliable waveform transmission.

POWER PULSE

With the function of group pulse, and can realize unidirectional discharge, the optimized combination of nine kinds of all-digital pulse, the waveform is more accurate and stable, the utilization of power is high, and the loss of electrode wire Is small.

INTEGRATED HIGH-FREQUENCY BOARD

Highly integrated design, very convenient for disassembly and installation, easy for after-sales maintenance.

HIGH PRESSURE WATER PUMP

Strong horsepower, wear-resistant and corrosion-resistant.

500 WATT RESISTOR

Resistor is high temperature resistant, not easy to get hot, long service life.

THREE-PHASE DRY-TYPE TRANSFORMER

High temperature resistant enameled wire package, low noise, energy saving and environmental protection.

FAULT PROTECTION AND WARNING FUNCTION

The machine tool has a protection function, the machine tool main oscillator power supply, drive power supply with light-emitting diodes, can realize the online detection of faults, fault alarm lights.
