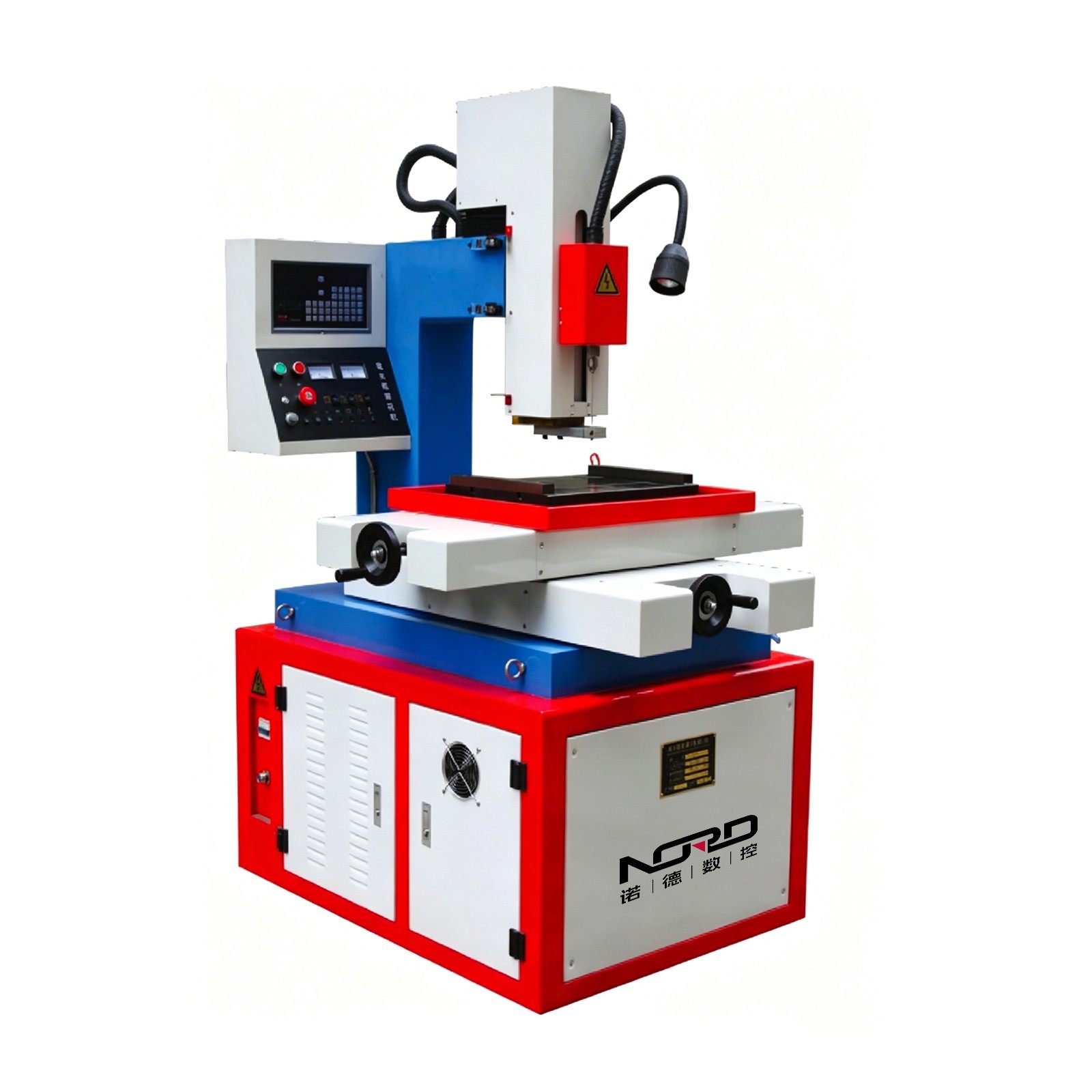

DD703 High-speed EDM drilling machine
Brand: Nuode
Category: EDM Drilling Machine
Share product:
Performance characteristics
Can process stainless steel, quenched steel, carbide, copper,aluminum and other conductive materials;
Can process holes with a diameter of 0.3-3mm anda maximumdepth-to-diameter ratio of more than 200:1;
The processing speed can generally reach 30-60mm perminute (40mm thick)
Use tap water directly as working fluid
Can be configured into a multi-axis CNC or digital displaymachine according to user' s requirements
Main technical parameters
Main technical parameters

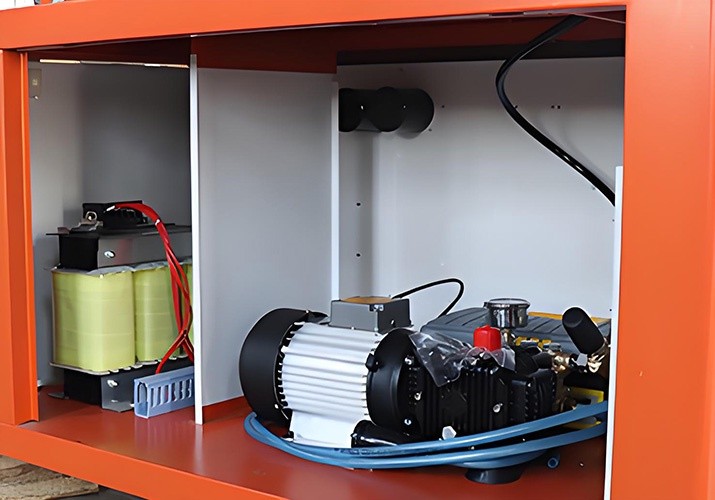

EQUIPMENT BOTTOM
Reasonable layout, ventilation, dustproof, heat dissipation, anti-interference.

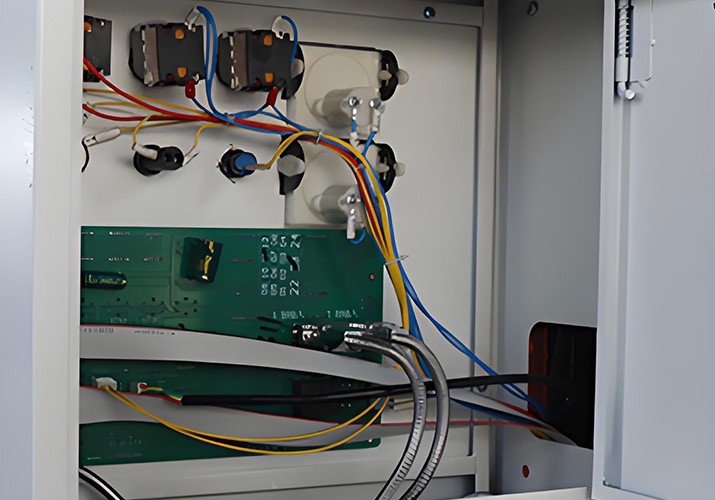

ELECTRONIC COMPONENTS
High temperature aging for a long time, to meet the need of continuous work of components in all-weather.

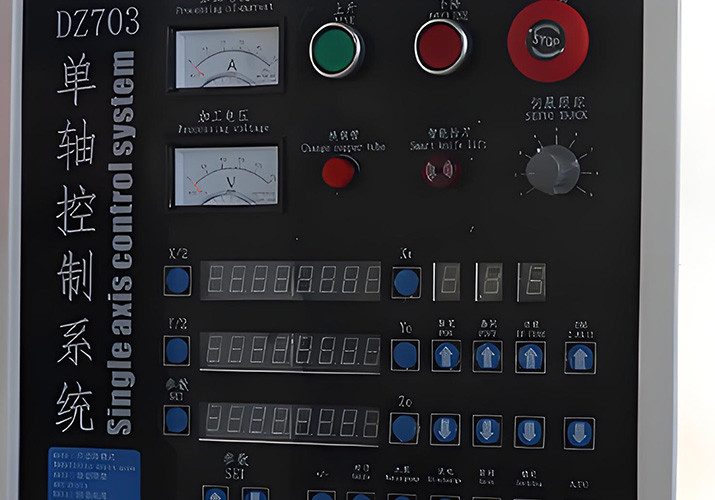

POWER SUPPLY SYSTEM
Adopting the 3rd generation of independent module professional digital pulse power supply, compared with the integrated power supply, the system is highly integrated, multiple optoelectronic isolation, with higher anti-interference ability and more reliable waveform transmission.

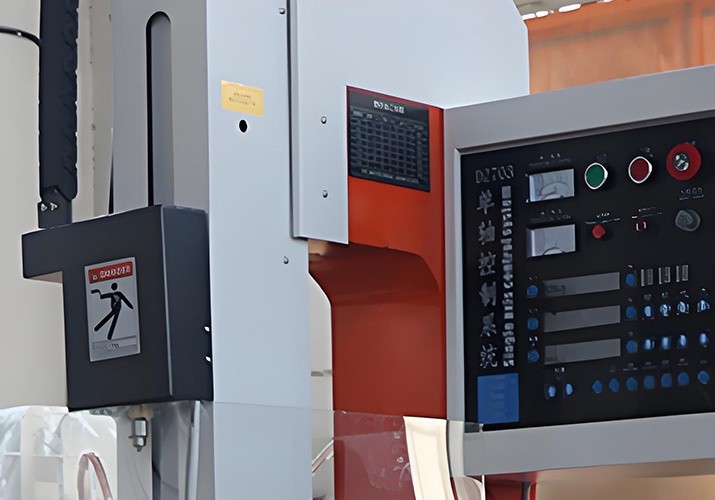

POWER PULSE
With the function of group pulse, and can realize unidirectional discharge, the optimized combination of nine kinds of all-digital pulse, the waveform is more accurate and stable, the utilization of power is high, and the loss of electrode wire Is small.

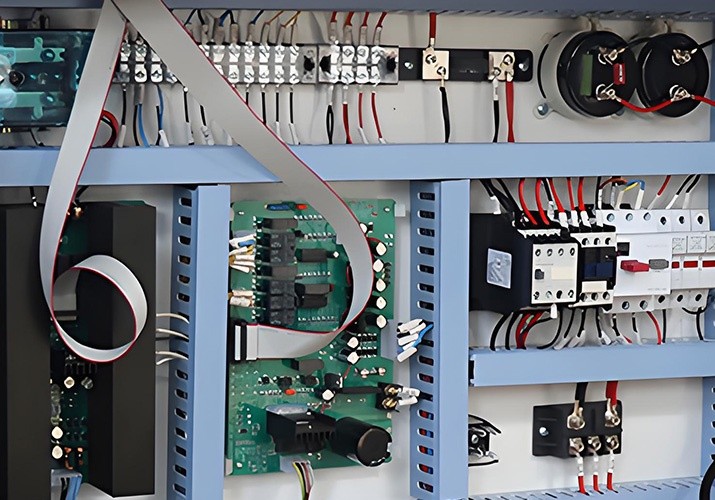

INTEGRATED HIGH-FREQUENCY BOARD
Highly integrated design, very convenient for disassembly and installation, easy for after-sales maintenance.

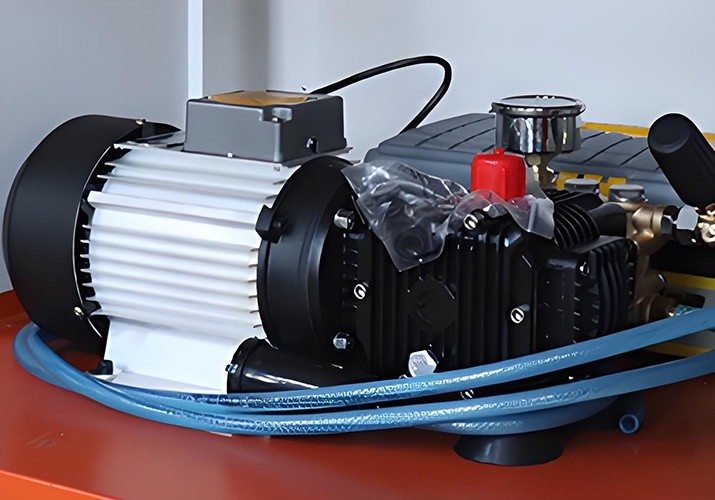

HIGH PRESSURE WATER PUMP
Strong horsepower, wear-resistant and corrosion-resistant.

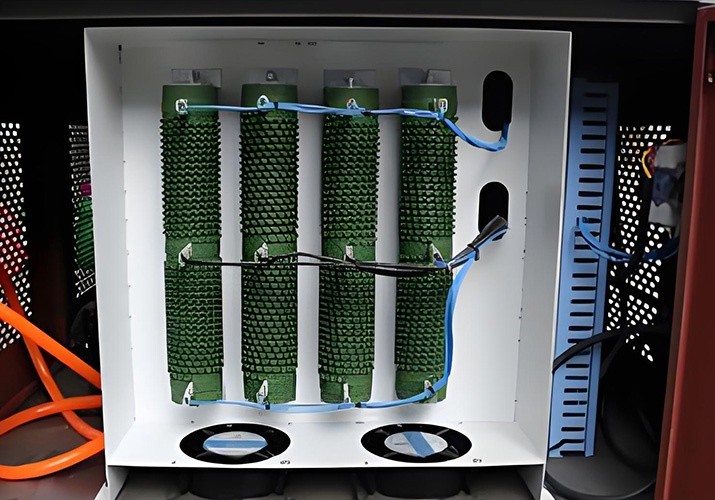

500 WATT RESISTOR
Resistor is high temperature resistant, not easy to get hot, long service life.

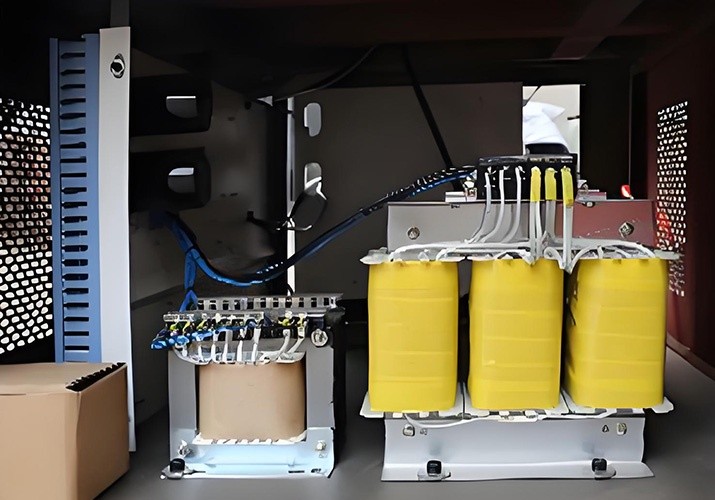

THREE-PHASE DRY-TYPE TRANSFORMER
High temperature resistant enameled wire package, low noise, energy saving and environmental protection.

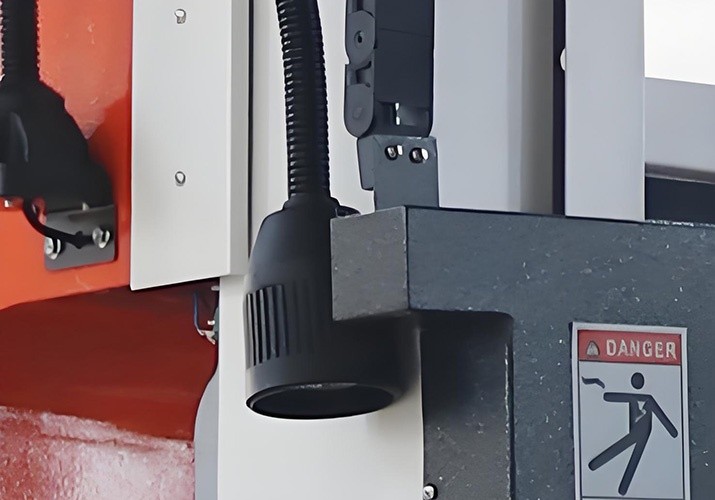

FAULT PROTECTION AND WARNING FUNCTION
The machine tool has a protection function, the machine tool main oscillator power supply, drive power supply with light-emitting diodes, can realize the online detection of faults, fault alarm lights.
