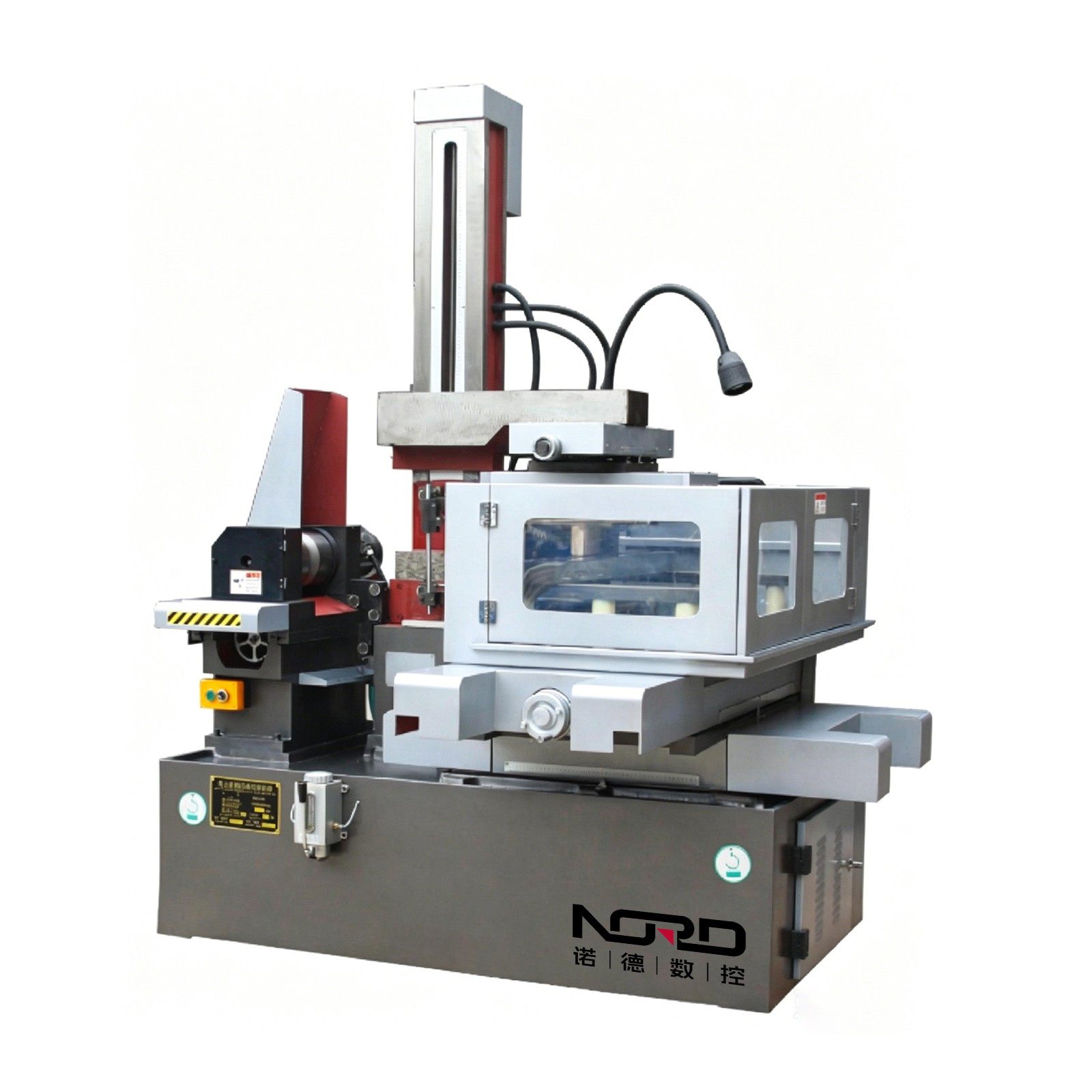

DK7763 Fast speed EDM wire cutting machine

Large thickness and large taper model
Model: DK7763
Brand: Nuode
Category: High Speed EDM Wire Cutting Machine

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Items/Specification	DK7735	DK7745	DK7745F
Worktable size(mm)	730 × 500	830 × 600	930 × 550
Worktable travel(mm)	350 × 450	450 × 550	450 × 650
Max. processing thickness(mm)	400	400	400
Max. workpiece weight(kg)	300	450	450

Items/Specification	DK7750	DK7750F	DK7763
Worktable size(mm)	950 × 650	1150 × 650	1150 × 760
Worktable travel(mm)	500 × 630	500 × 800	630 × 800
Max. processing thickness(mm)	600	600	600
Max. workpiece weight(kg)	700	700	1000

Items/Specification	DK7763F	DK7780	DK7780F
Worktable size(mm)	1350 × 760	1350 × 985	1600 × 985
Worktable travel(mm)	630 × 1000	800 × 1000	800 × 1200
Max. processing thickness(mm)	600	800	800
Max. workpiece weight(kg)	1000	1500	1500

Items/Specification	DK77100	DK77100F	DK77120
Worktable size(mm)	1640 × 1150	1900 × 1150	2000 × 1300
Worktable travel(mm)	1000 × 1200	1000 × 1400	1200 × 1600
Max. processing thickness(mm)	800	800	1000
Max. workpiece weight(kg)	2500	2500	4000

General technical parameters

Processing taper(mm)	±6°
Max. cutting speed(mm/min)	≥100
Best processing surface roughness(μm)	≤2.5
Electrode wire diameter(mm)	0.10–0.20
Electrode wire fixed speed(m/s)	11.5
Processing accuracy	GB7926–2005
Power supply	50Hz.380V

TAIWAN LINEAR GUIDE

Wire barrel assembly adopts precise linear guides from Taiwan,which can effectively prevent the loosening of one-sided wire and prevent the wire from breaking.

CHROME-PLATED WIREBARREL

The wire barrel adopts a chromlum plating process to increase the surface finish,reduce the runout of the molybdenum wire, and keep the molybdenum wire stable.

V-SHAPED DOUBLE-SIDEDGUIDE WHEEL

Metal integral molding, waterproof and wear-resistant, easy to thread.

Z AXIS MOTOR

Instead of manually adjusting the height of the upper wire rack,electric adjustment is more labor-saving.

STANDARD CUTTING TAPER: ±6°

Standard cutting taper:±6°;
Optional: ±15°,±30°,±45°;
Tips:
±15°,optional for DK7735 or larger model;
±30°,optional for DK7745 or larger model;
±45°,optional for DK7750 or larger model.

NON-CONTACT TRAVELLIMIT SWITCH

Non-contact induction switch, longer service life.

STEPPER MOTOR

X,Y,U,V axis are driven by stepper motors(Servo motor is optional).

MOLYBDENUM WIRE

0.18*2000

CARBIDE CONDUCTIVE BLOCK

8*20*6

Q：

What CNC system do you use?

A：

FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, etc. It depends on your choice.

Q：

When is the delivery time?

A：

If the machine you will order is standard machine, we can ready the machine within 15 days. If some special machines, it will become longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time. We will give you the answer accordingly.

Q：

What is your minimum order quantity and warranty?

A：

Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.

Q：

Are you factory or trading company?

A：

We are factory and we have Import and export rights, There are many clients coming here to visit our factory every year.

Q：

Is there a tracking number for my item?

A：

Yes, of course. We usually ship your goods by EMS, DHL, FedEx, UPS, TNT with online track, you can view the ship status on website.

Q：

It is my first time to use this machine , is it easy to operate?

A：

We have manual book and operation video, it can teach you how to use it .
If there is still have any question, we can teach you online.

Q：

What can i do if the machine have any problems after i get it?

A：

Free parts will be sent to you during warranty period
Free after-sales service will be given in the machine lifetime, we offer you 24-hours online service.
