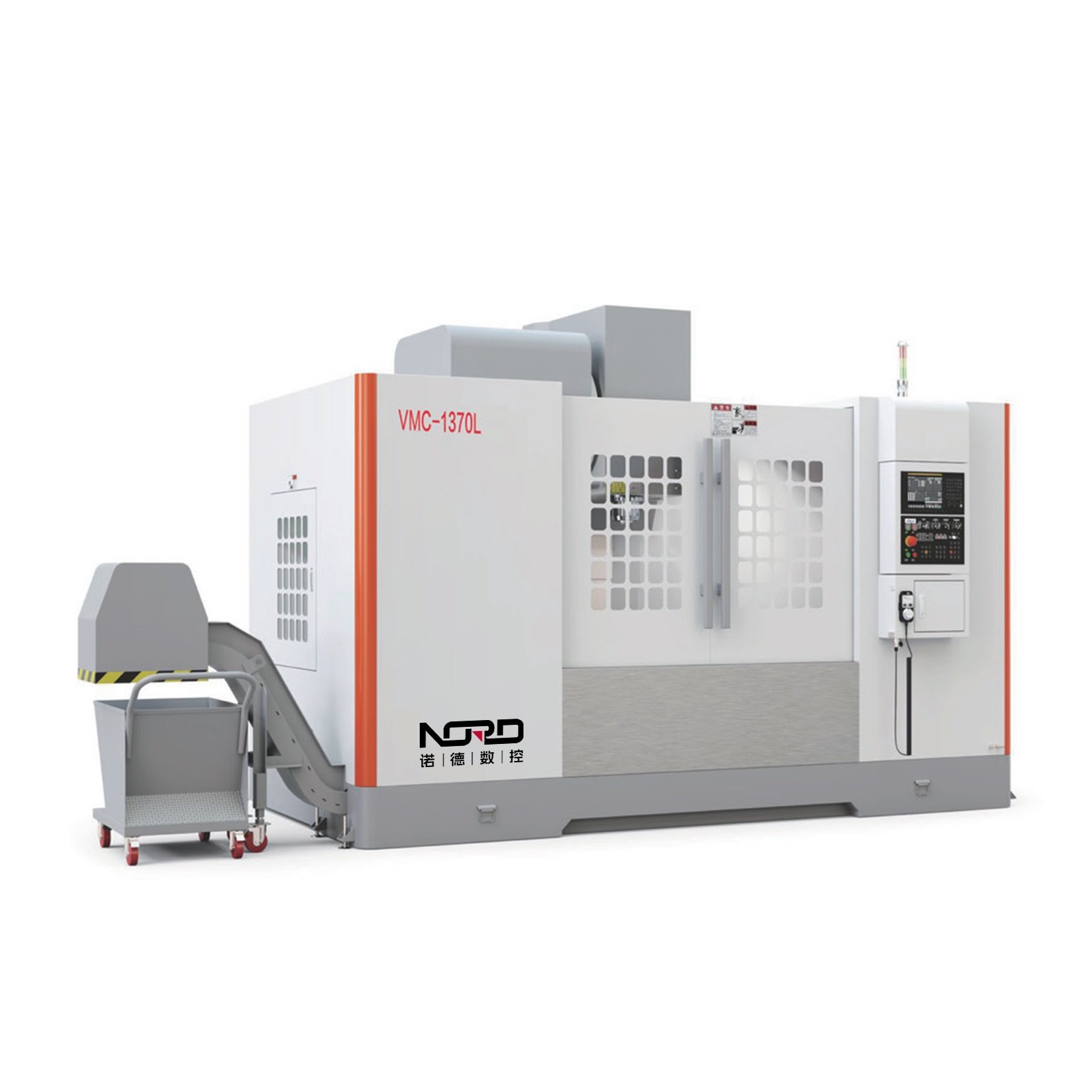

VMC-850L/1060L/1160L/1370L/1580L/1690L/1890L CNC gantry machining center

Model: VMC-850L/1060L/1160L/1370L/1580L/1690L/1890L
Brand: Nuode
Category: Machining Center

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Item	Unit	VMC-850L	VMC-1060L	VMC-1160L	VMC-1370L	VMC-1580L	VMC-1690L	VMC-1890L
X-axis travel	mm	800	1000	1100	1200	1500	1600	1800
Y-axis travel	mm	500	600	600	700	800	900	900
Z-axis travel	mm	500	600	600	600	700	600	600
Distance from spindle end face to work surface	mm	110-610	180-780	175-775	150-750	120-820	145-745	145-745
Distance from spindle center to column protection surface	mm	560	645	645	650	810	950	950
Table size	mm	1000×500	1100×550	1200×600	1360×700	1700×800	1800×900	2000×900
Maximum bearing capacity	kg	600	800	800	1000	1500	1600	1600
Table T-slot (Number size spacing)	mm	5-18/90	5-18/100	5-18/100	5-18/152.5	5-22/135	5-22/165	5-22/165
Taper specification		BT40	BT40	BT40	BT40	BT50	BT50	BT50
Spindle speed (optional, dependent on control system)	rpm/min	8000（Standard Configuration）/10000/12000/15000
Spindle motor	kw	7.5	11	7.5/11	15/18.5	15/18.5	15/18.5	15/18.5
Three-axis motor (X/Y/Z)	kw	2/2/2	3/3/3	3/3/3	3/3/3	3/3/3	3/3/3	3/3/3
Control system (optional)		Mitsubishi, Fanuc, Siemens
X, Y, Z axis fast moving speed	m/min	30/30/16	16/16/12	30/30/16	24/24/15	20/20/15	20/20/15	20/20/15
Positioning accuracy	mm	JIS±0.005/300	JIS±0.005/300	JIS±0.005/300	JIS±0.005/300	JIS±0.005/300	JIS±0.005/300	JIS±0.005/300
Repeated positioning accuracy	mm	JIS±0.003/300	JIS±0.003/300	JIS±0.003/300	JIS±0.003/300	JIS±0.003/300	JIS±0.003/300	JIS±0.003/300
Atmospheric pressure	kg/cm²	≥6	≥6	≥6	≥6	≥6	≥6	≥6
Tool storage capacity	把	24	24	24	24	24	24	24
Machine weight	T	5.5	7.5	8	9	12	13	14
Machine size (L × W × H)	mm	2700×2400×2700	3200×2400×3100	3300×2600×2800	3590×3138×2907	4300×3320×2970	4494×3644×3254	4900×3470×3400

Due to technical updates, product parameters are subject to change without prior notice.
