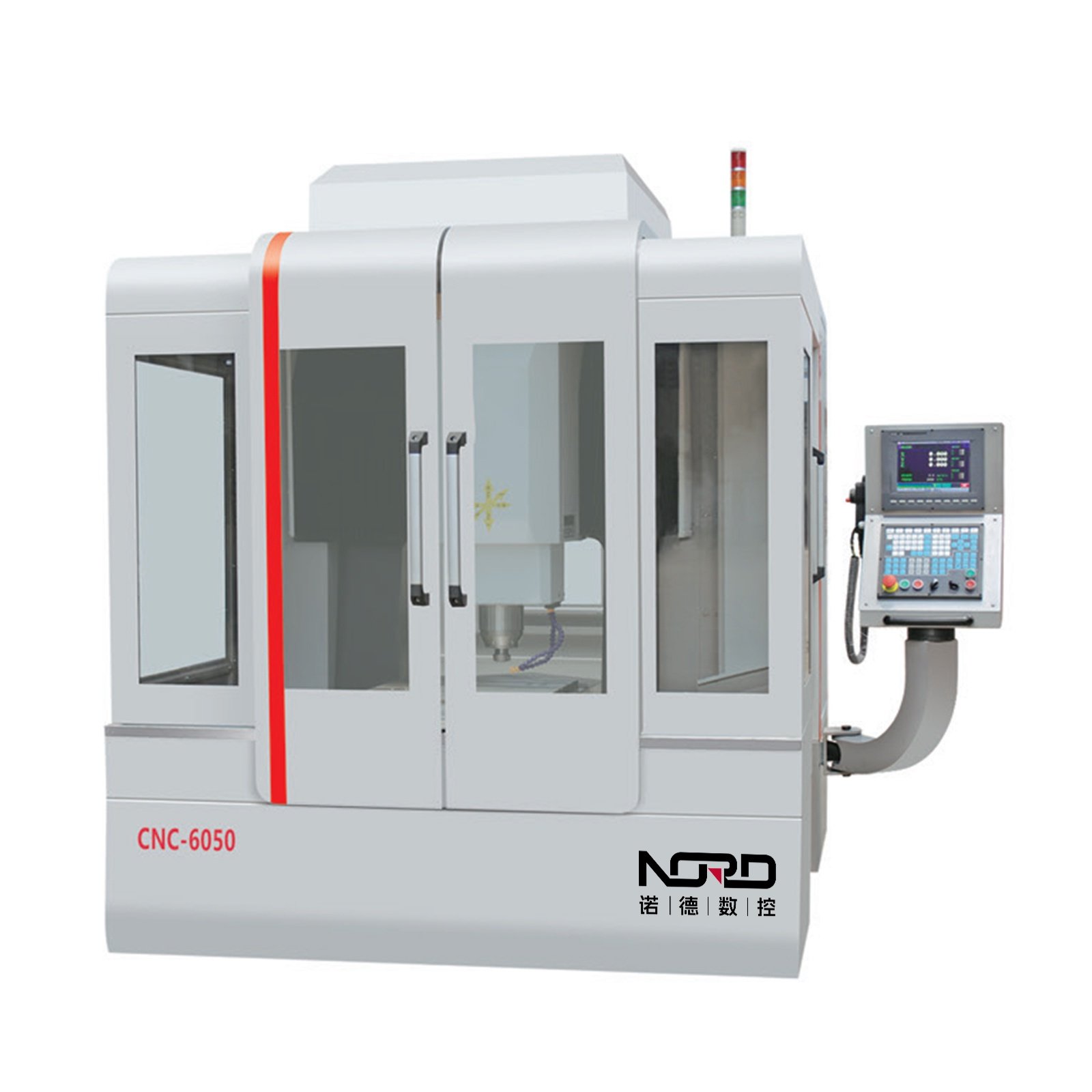

CNC-5040/6050/7080/8090 CNC engraving and milling machine

Model: CNC-5040/6050/7080/8090
Brand: Nuode
Category: Machining Center

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Item	Unit	5040	6050	7080	12090
Maximum engraving size	mm	500×400×220	600×500×250	700×800×300	800×800×350
Maximum empty line speed	mm/mir	15000	15000	15000	15000
Variable-frequency spindle motor	kw	3	5.5	5.5（选配7.5）	5.5（选配7.5）
Maximum spindle speed	r/min	24000	18000（选配24000）	18000	18000
Spindle suitable tool handle		Φ3-Φ16	Φ3-Φ16	Φ3-Φ19	Φ3-Φ19
Rated power consumption	kw	7	8	10	12
Drive motor		Servo motor selection for Japan/Taiwan
Numerical control system		Syntec system option	Syntec system option	Syntec system option	Syntec system option
Table load	kg	300	500	600	600
Weight	T	2.3	2.8	3.2	4.7
Table size	mm	500×400	600×500	700×800	800×800

Due to technical updates, product parameters are subject to change without prior notice.

GUIDE RAILS

Taiwan Ball guide rail or roller guide rail can be choosed.

Standard with 3 axis wire rail Wire & 1 hard or 3 axis hard rail can also be choosed.

SCREW

Taiwan High precision ball screw.

Srew bearings. P4 level.

SPINDLE

Spindle speed with 8000 rpm, 10000 rpm,can also choose 12000 rpm high precision,high rigidity.

OPTICAL MACHINE

The structure of the machine tool has been analyzed, The simulation experiment was carried out.

Excellent bending resistance is guaranteed.

CNC SYSTEM

Timing and quantitative injection of oil to each lubrication part.

Q：

What information do you need before making quotation?

A：

Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q：

How to choose the machine I want?

A：

Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model;Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish)

Q：

What should I do to start a new business in EDM wire cutting machine area?

A：

Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.

Q：

Why choose you?What is the difference between you and other Chinese supplier?

A：

We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price.

Q：

I'm worried about after-sales service!

A：

Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
