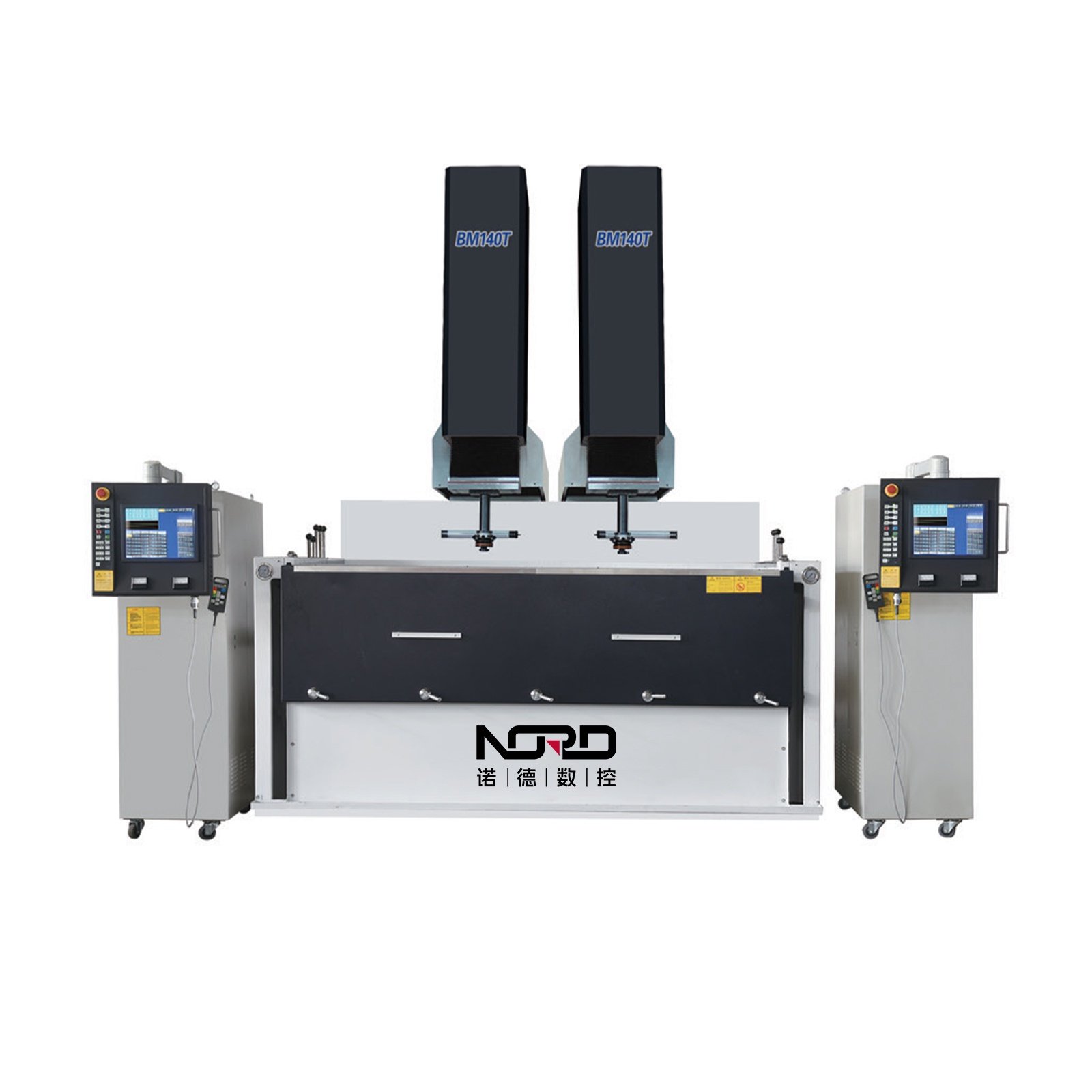

CNC-BM120T-140T-CNC-BM150T-180T Discharge spark machine

Model: CNC-BM120T-140T-CNC-BM150T-180T
Brand: Nuode
Category: EDM Die Sinking Machine

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Item		Unit	BM120T	BM140T	BM150T	BM180T
Workbench size (L × W)		mm	1380×800	1500×900	1600×1000	2000×1000
Standard axis stroke	X-axis	mm	1200	1450	1500	1800
	Y-axis	mm	600	700	700	800
	Z-axis	mm	450	500	500	600
Internal dimensions of the processing fluid tank		mm	2000×1300×700	2300×1300×650	2400×1380×650	3500×1800×650
Maximum electrode weight		kg	150	100	100	200
Table weight		kg	4000	5000	5000	8000
Distance from electrode plate to work surface	Least	mm	550	600	650	600
Distance from electrode plate to work surface	Max	mm	1000	1150	1150	1200
Total input power		KVA	10	10	10	20 (10+10)
Input power supply		V	380	380	380	380
Maximum machining current		A	50	50	50	50
Number of control axes			three-axis three-linkage	three-axis three-linkage	three-axis three-linkage	three-axis three-linkage

Due to technical updates, product parameters are subject to change without prior notice.

Q：

What information do you need before making quotation?

A：

Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q：

How to choose the machine I want?

A：

Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model;Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish)

Q：

What should I do to start a new business in EDM wire cutting machine area?

A：

Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.

Q：

Why choose you?What is the difference between you and other Chinese supplier?

A：

We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price.

Q：

I'm worried about after-sales service!

A：

Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
