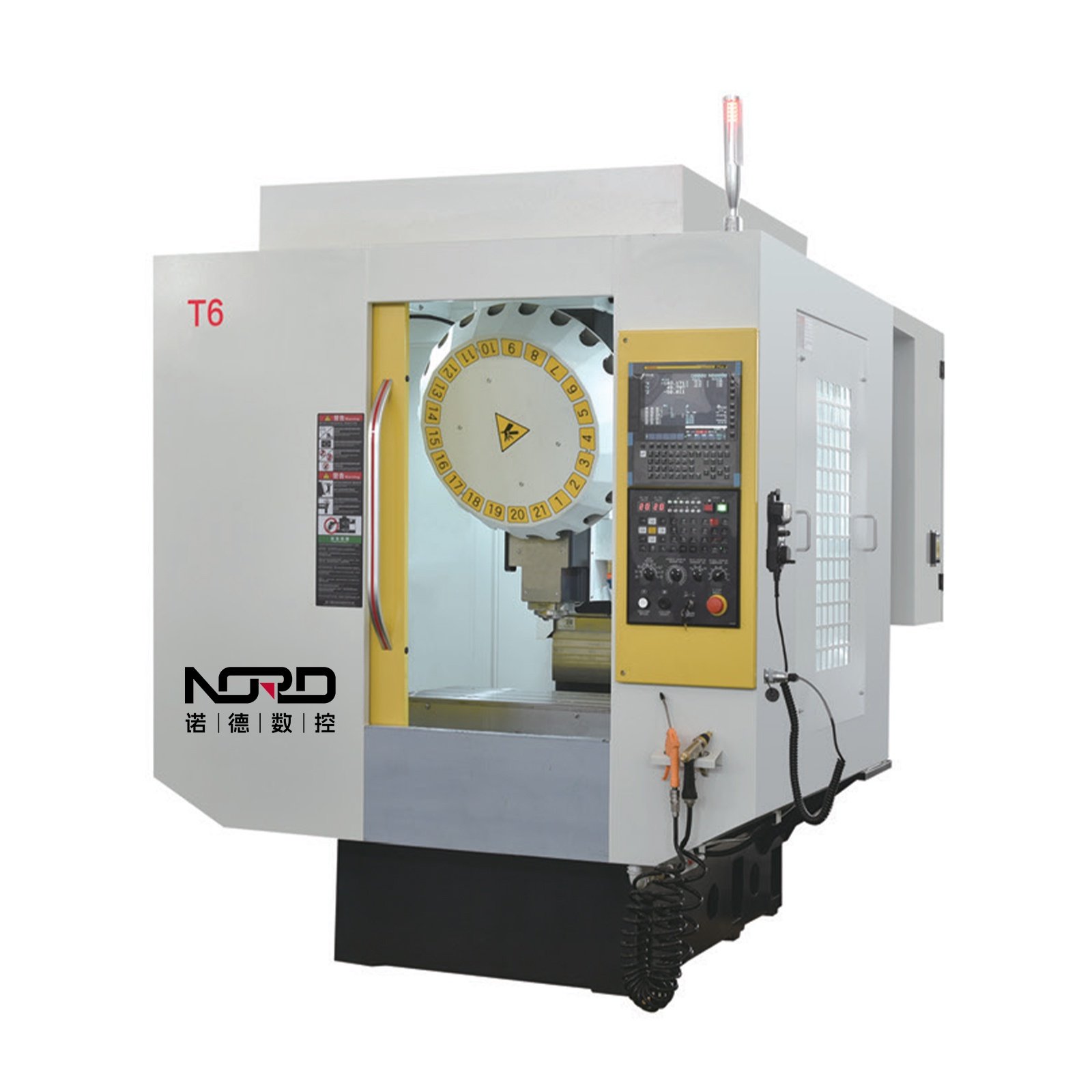

T6/T7/T8/T10 High speed drilling and tapping machine

Model: T6/T7/T8/T10
Brand: Nuode
Category: Machining Center

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Machine data	Unit	GDT-T6	GDT-T7	GDT-T8	GDT-T10
X-axis travel	mm	600	700	800	1000
Y-axis travel	mm	400	450	500	500
Z-axis travel	mm	300	300	330	330
Distance from spindle end face to work surface	mm	150-450	150-450	150-480	150-480
Distance from spindle center to column protection surface	mm	464	464	546	546
Table size	mm	700×420	800×420	1000×500	1100×500
Maximum bearing capacity	kg	300	300	350	350
Table T-slot (Number size spacing)	mm	3-14/125	3-14/125	5-18/100	5-18/100
Taper specification		BT30	BT30	BT30	BT30
Spindle speed	rpm/min	20000 (Standard)	20000 (Standard)	20000 (Standard)	20000 (Standard)
Spindle motor	kw	5.5	5.5	5.5	5.5
Three-axis motor (X/Y/Z)	kw	1.5/1.5/3.0	1.5/1.5/3.0	2.0/2.0/3.0	2.0/2.0/3.0
Control system (optional)		MITSUBISHI、FANUC、SIEMENS
X, Y, Z axis fast moving speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48
Positioning accuracy	mm	JIS±0.005/300	JIS±0.005/300	JIS±0.005/300	JIS±0.005/300
Repeated positioning accuracy	mm	JIS±0.003/300	JIS±0.003/300	JIS±0.003/300	JIS±0.003/300
Atmospheric pressure	kg/cm²	≥6	≥6	≥6	≥6
Tool storage capacity		21	21	21	21
Machine weight	T	3.2	3.5	4.3	4.8
Machine size (L × W × H)	mm	1900×2350×2750	2000×2450×3100	2300×2450×3100	3100×2550×3100

Due to technical updates, product parameters are subject to change without prior notice.

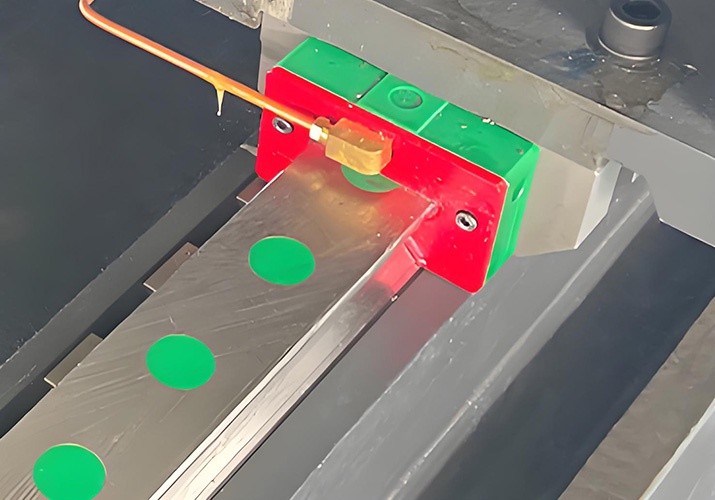

GUIDE RAILS

Taiwan Ball guide rail or roller guide rail can be choosed.

Standard with 3 axis wire rail Wire & 1 hard or 3 axis hard rail can also be choosed.

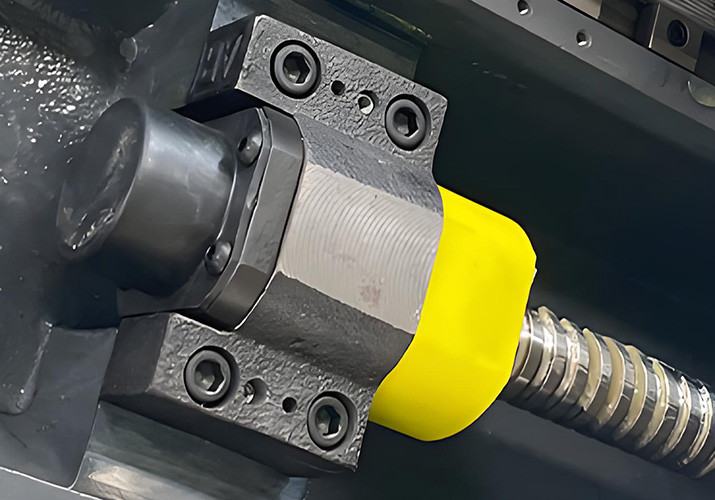

SCREW

Taiwan High precision ball screw.

Srew bearings. P4 level.

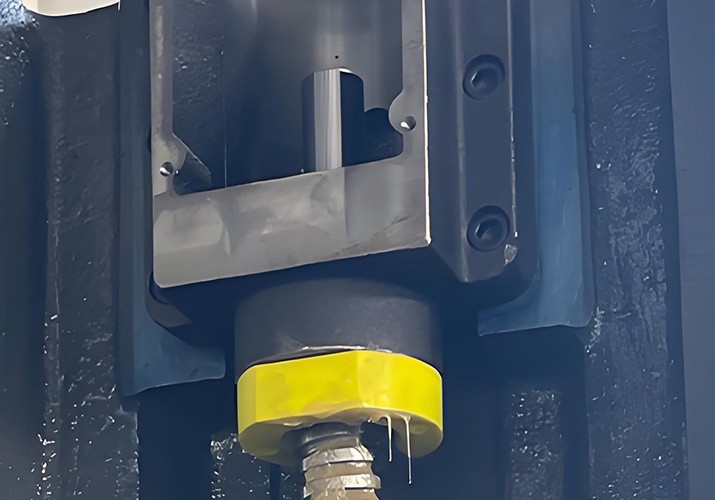

SPINDLE

Spindle speed with 8000 rpm, 10000 rpm,can also choose 12000 rpm high precision,high rigidity.

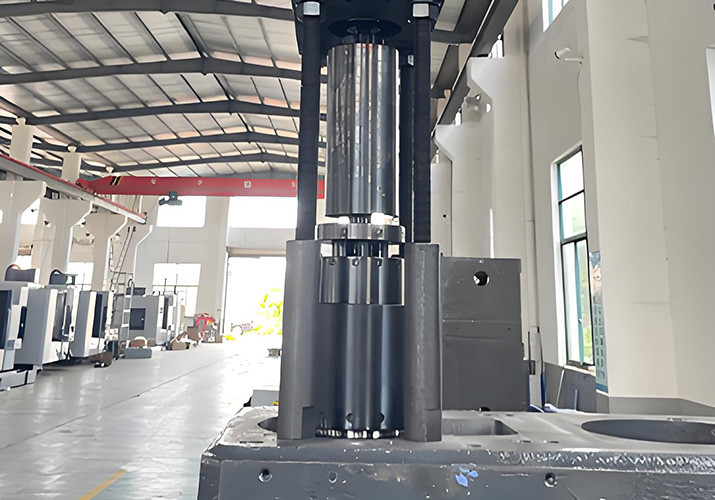

OPTICAL MACHINE

The structure of the machine tool has been analyzed, The simulation experiment was carried out.

Excellent bending resistance is guaranteed.

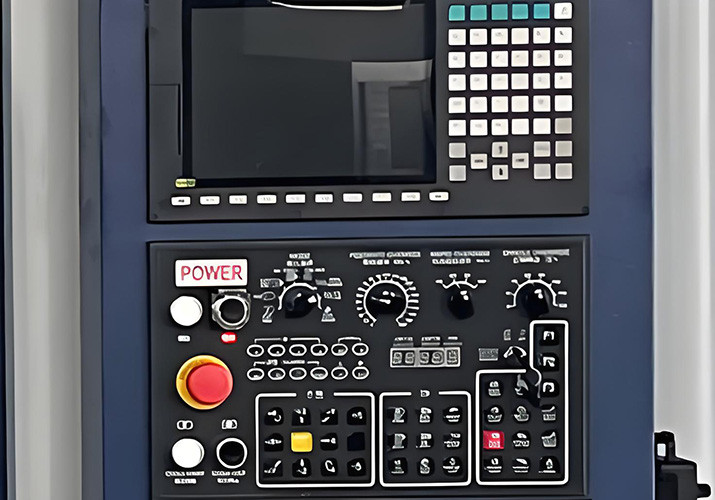

CNC SYSTEM

Timing and quantitative injection of oil to each lubrication part.

Q：

What information do you need before making quotation?

A：

Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q：

How to choose the machine I want?

A：

Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model;Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish)

Q：

What should I do to start a new business in EDM wire cutting machine area?

A：

Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.

Q：

Why choose you?What is the difference between you and other Chinese supplier?

A：

We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price.

Q：

I'm worried about after-sales service!

A：

Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
