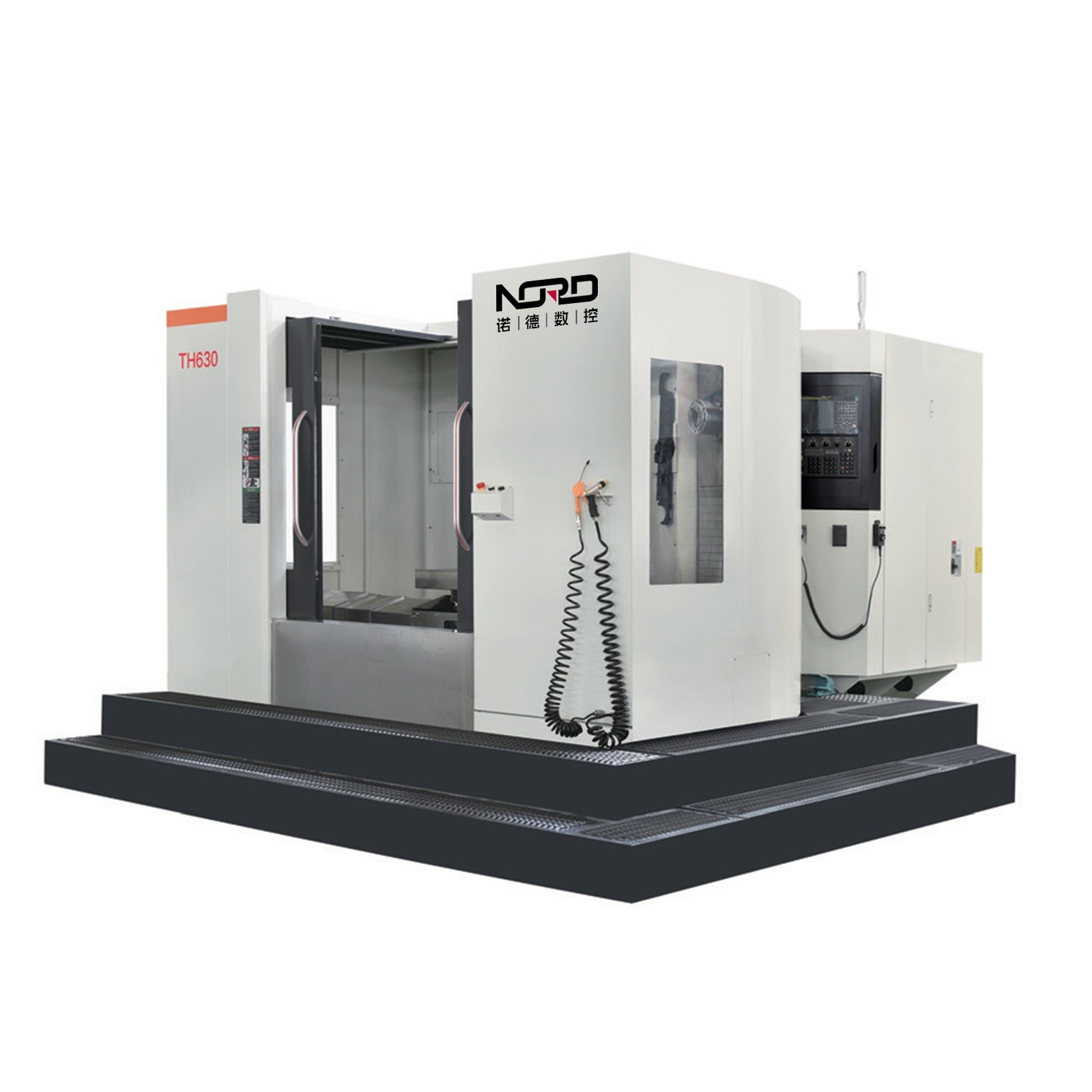

TH500/630/800/1000 Horizontal machining center

Model: TH500/630/800/1000
Brand: Nuode
Category: Machining Center

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Item	Unit	TH500	TH630	TH800	TH1000
Table size	mm	500×500	630×630	800×800	1000×1000
Number of tables		Standard single workbench, optional exchange double workbench
Table rotation	°	1°×360	1°×360	1°×360	1°×360
Maximum load	kg	500	1200	2000	2500
X/Y/Z axis travel	mm	600/610/600	1050/750/900	1300/1000/1000	1600/1000/1000
Distance from spindle center to work surface	mm	40-650	120-870	120-1120	120-1120
Distance from spindle end face to center of table	mm	60-660	130-1030	200-1200	200-1200
Taper specification (Model/mounting size)		BT40/Φ150	BT50/Φ190	BT50/Φ190	BT50/Φ190
Table T-slot (Number size spacing)	mm	5-22/100	5-22/125	5-22/200	5-22/200
Maximum spindle speed	rpm	6000	6000	6000	6000
Three-axis cutting feed rate	mm/min	10-10000	10-10000	10-10000	10-10000
X/Y/Z Three axes fast moving X/Y/Z	m/min	30	24	20	20
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeated positioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Spindle drive motor	kw	11	15	15	15
X,Y,Z drive the motor	kw	3/3/3	3/3/3	4/3/4	4/3/4
Tool storage capacity (optional)	把	24/30	30/40	30/40	30/40
Floor area (length × width × height)	mm	2500/3300/2600	3850/3500/3200	4850/4300/4100	4850/4300/4100
Machine weight (about)	T	7	10	12	16.5
Remark		Cross slide structure		Inverted "T" structure	Inverted "T" structure

Due to technical updates, product parameters are subject to change without prior notice.

Q：

What information do you need before making quotation?

A：

Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q：

How to choose the machine I want?

A：

Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model;Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish)

Q：

What should I do to start a new business in EDM wire cutting machine area?

A：

Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.

Q：

Why choose you?What is the difference between you and other Chinese supplier?

A：

We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price.

Q：

I'm worried about after-sales service!

A：

Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
