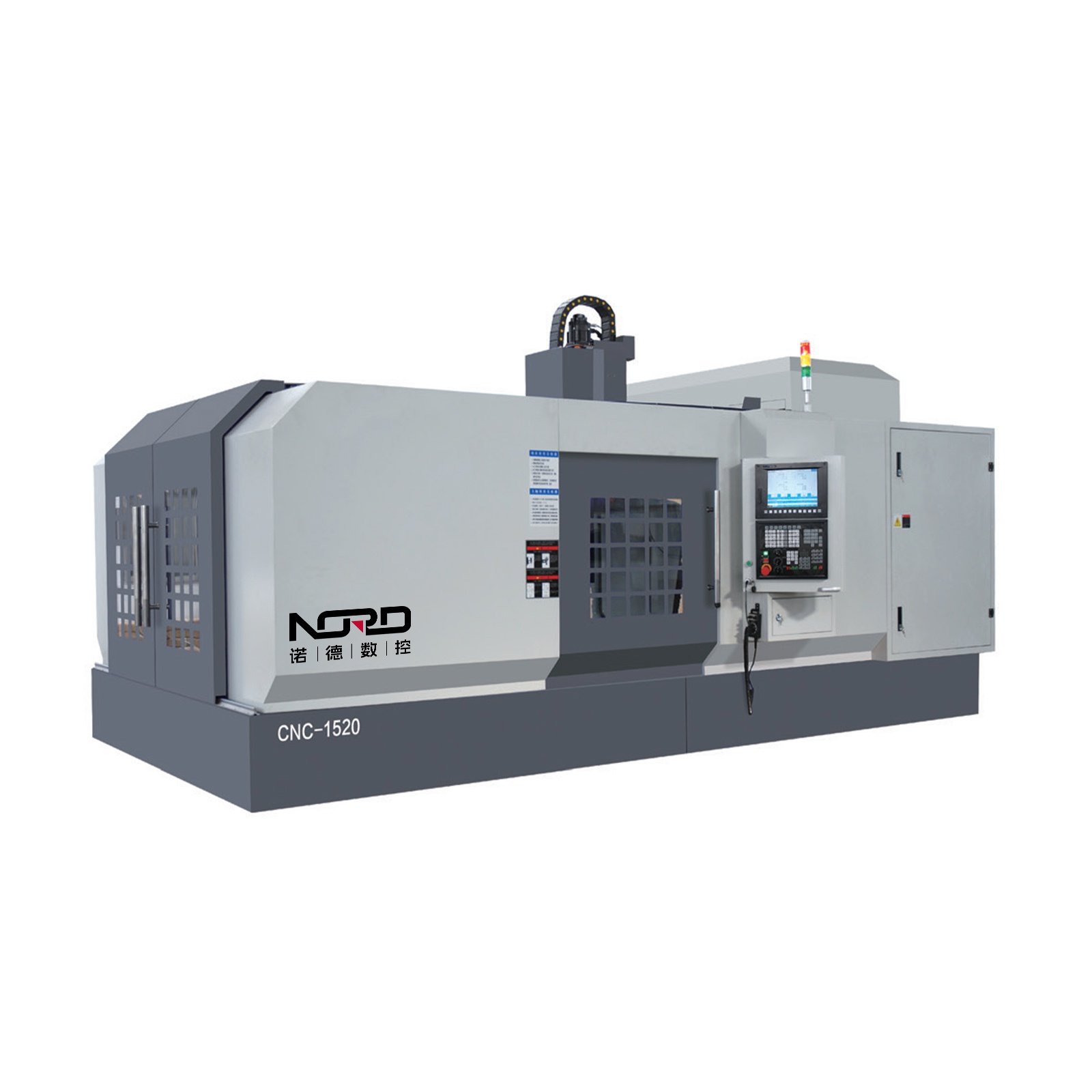

CNC-1113/1316/1520 Gantry machining center

Model: CNC-1113/1316/1520
Brand: Nuode
Category: Machining Center

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Item	Unit	CNC-1113	CNC-1316	CNC-1520
Maximum engraving size	mm	1300×1100×500（optional700）	1600×1300×500（optional700）	2000×1500×500（optional700）
Maximum empty line speed	mm/mir	12000	12000	12000
Servo spindle motor	kw	7.5 belt drive at 8000 rpm / 7.5 direct coupling at 12000 rpm		11 belt drive at 8000 rpm / 11 direct coupling at 12000 rpm
Maximum spindle speed of variable frequency electric spindle	r/min	15000	15000	15000
The main shaft is suitable for the tool handle		BT40	BT40	BT40
Rated power consumption	kw	18	20	25
Drive motor		Selection of servo motors in Japan/Taiwan	Selection of servo motors in Japan/Taiwan	Selection of servo motors in Japan/Taiwan
Numerical control system		Optional configuration for the new generation system	Optional configuration for the new generation system	Optional configuration for the new generation system
Table load	kg	2000	2000	3000
Weight	T	6.8	8	12
Table size	mm	1300×1100	1600×1300	2000×1500

Due to technical updates, product parameters are subject to change without prior notice.

GUIDE RAILS

Taiwan Ball guide rail or roller guide rail can be choosed.

Standard with 3 axis wire rail Wire & 1 hard or 3 axis hard rail can also be choosed.

SCREW

Taiwan High precision ball screw.

Srew bearings. P4 level.

SPINDLE

Spindle speed with 8000 rpm, 10000 rpm,can also choose 12000 rpm high precision,high rigidity.

OPTICAL MACHINE

The structure of the machine tool has been analyzed, The simulation experiment was carried out.

Excellent bending resistance is guaranteed.

CNC SYSTEM

Timing and quantitative injection of oil to each lubrication part.

Q：

What information do you need before making quotation?

A：

Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q：

How to choose the machine I want?

A：

Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model;Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish)

Q：

What should I do to start a new business in EDM wire cutting machine area?

A：

Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.

Q：

Why choose you?What is the difference between you and other Chinese supplier?

A：

We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price.

Q：

I'm worried about after-sales service!

A：

Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
