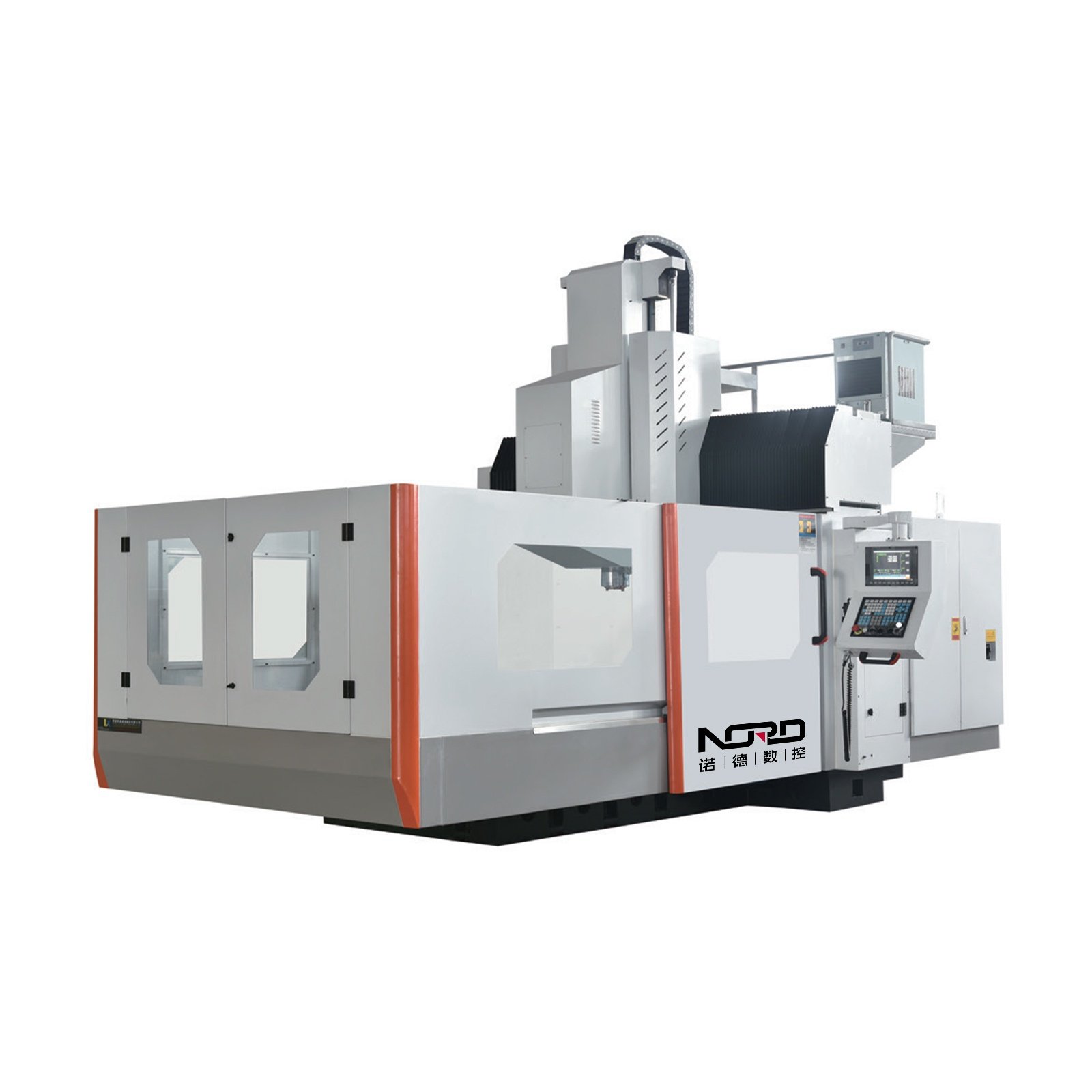

VMC-2012/2516 VMC-3016/4012 VMC-6020 Gantry machining center

Model: VMC-2012/2516 VMC-3016/4012 VMC-6020
Brand: Nuode
Category: Machining Center

Get A Quote

Share product:

Product Description

FAQ

Main technical parameters

Item	Unit	VMC-2012	VMC-2516	VMC-3016	VMC-4012	VMC-6020
Table area (length × width)	mm	2000×1000	2500×1600	3000×1600	4000×1200	6000×2000
Maximum bearing capacity of table	kg	5000	7500	9000	12000	16000
T-slot (slot number × slot width × pitch)	mm	5-22×180	7-22×190	7-22×190	7-22×170	11-22×180
Door width	mm	1500	1900	1900	1500	2400
X /Y /Z axis travel	mm	2200/1200/800	2700/1600/800	3200/1600/800	4200/1200/800	6200/2000/800
Distance from spindle end face to table surface	mm	150-950	150-950	150-950	150-950	150-950
Numerical control system		optional	optional	optional	optional	optional
X /Y /Z axis moving rapidly	m/min	10/10/8	8/10/8	8/10/8	8/10/8	8/10/8
Maximum cutting feed speed	m/min	6	6	6	5	5
Standard tool quantity	把	BT50-24	BT50-24	BT50-24	BT50-24	BT50-24
Maximum tool diameter/length	mm	Φ110/300	Φ110/300	Φ110/300	Φ110/300	Φ110/300
Tool exchange mode		pneumatic	pneumatic	pneumatic	pneumatic	pneumatic
Maximum tool weight	kg	18	18	18	18	18
Positioning accuracy	mm	0.025	0.025	0.025	0.025	0.025
Repeated positioning accuracy	mm	0.020	0.020	0.020	0.020	0.020
Guide form		X, Y linear rails Z hard rail	X, Y linear rails Z hard rail	X, Y linear rails Z hard rail	X, Y linear rails Z hard rail	X, Y linear rails Z hard rail
Spindle specification	mm	BT50/150	BT50/150	BT50/190	BT50/190	BT50/190
Maximum speed	rpm	6000	6000	4000	4000	4000
Spindle motor power	kw	15/18.5	15/18.5	22/26	22/26	22/26
Air demand	kg/cm²	≥6	≥6	≥6	≥6	≥6
Air source flow	m³/min	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5
Machine weight	kg	15000	19000	24000	26000	40000
Overall dimensions (L × W × H)	mm	6000×2940×4200	6700×3500×4200	8000×3500×4300	10000×3100×4300	13800×4700×4500

Due to technical updates, product parameters are subject to change without prior notice.

GUIDE RAILS

Taiwan Ball guide rail or roller guide rail can be choosed.

Standard with 3 axis wire rail Wire & 1 hard or 3 axis hard rail can also be choosed.

SCREW

Taiwan High precision ball screw.

Srew bearings. P4 level.

SPINDLE

Spindle speed with 8000 rpm, 10000 rpm,can also choose 12000 rpm high precision,high rigidity.

OPTICAL MACHINE

The structure of the machine tool has been analyzed, The simulation experiment was carried out.

Excellent bending resistance is guaranteed.

CNC SYSTEM

Timing and quantitative injection of oil to each lubrication part.

Q：

What information do you need before making quotation?

A：

Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q：

How to choose the machine I want?

A：

Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model;Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish)

Q：

What should I do to start a new business in EDM wire cutting machine area?

A：

Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.

Q：

Why choose you?What is the difference between you and other Chinese supplier?

A：

We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price.

Q：

I'm worried about after-sales service!

A：

Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
